Automated Robotic Adhesive Dispenser Precision Transistor Power Supply

Brand Name : MingSeal

Model Number : JMS1000A/B

Certification : CE Certificate,ISO,CE/ISO

Place of Origin : China

MOQ : 1

Price : $1-$10000

Payment Terms : L/C, T/T, D/A, D/P, MoneyGram, Western Union

Delivery Time : 5-60 days

Packaging Details : WOODEN

Condition : New

Type : Precision Transistor Power JMS1000A/B

After-sales service provided : Engineers available to service machinery overseas,Online support,Video technical support,No overseas service provided,Free spare parts

Electric Current Setting : 100~1000A

Power Supply Control Method : Constant Electric Current& Power Supply Constant Electric Current & Voltage

Power : 300W

Dimensions (W*D*H) : 306 × 160 ×338mm 308 ×326 × 175mm

Weight : 16kg

Contact Now

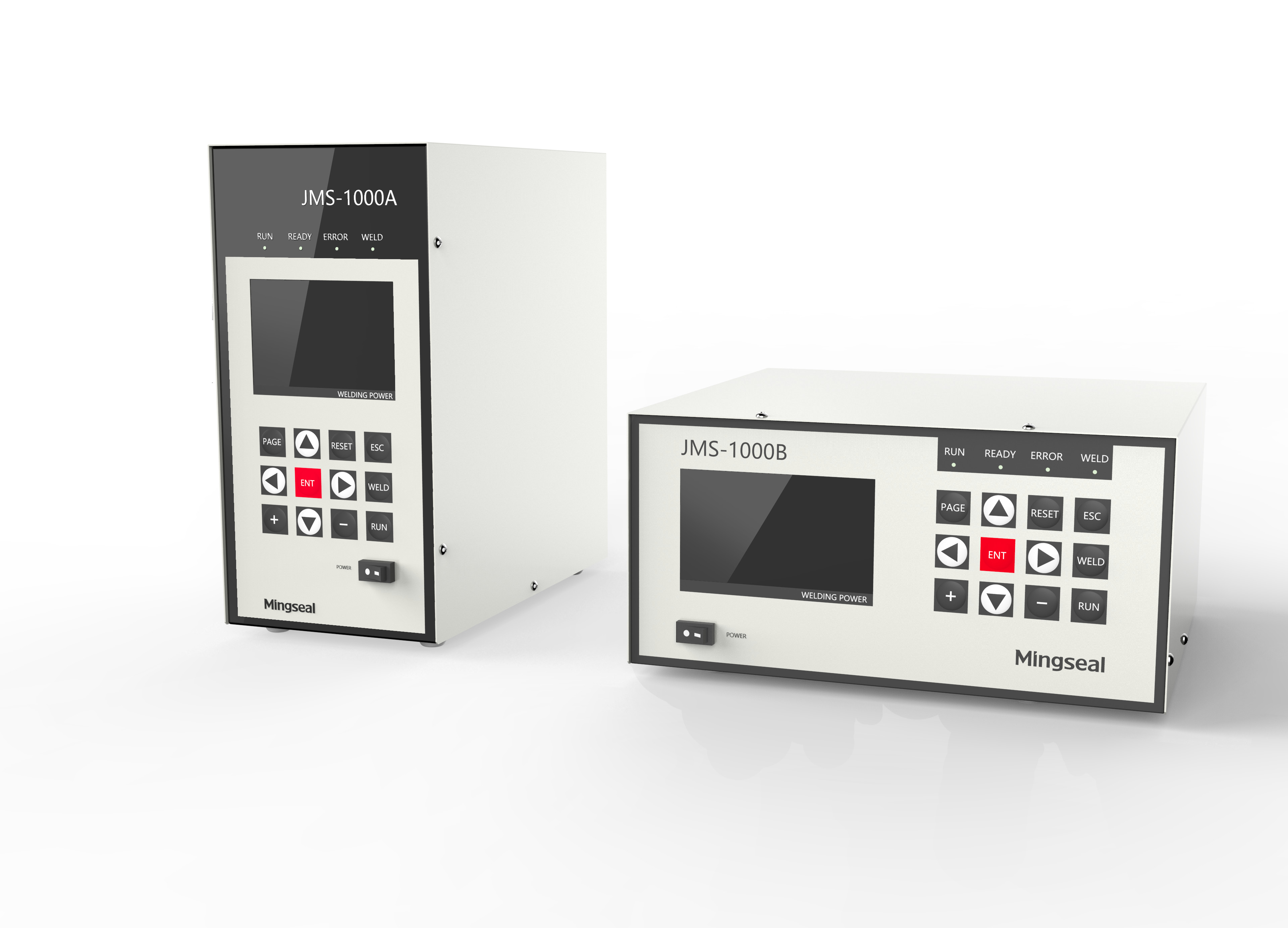

JMS1000A/B Precision Transistor Power Supply

Meeting the requirements on precise welding energy control in the precision electronic assembly, and suitable for applications such as small pads, thin plating, substrates with poor temperature resistance and FPC soft substrates.
Features and Advantages
  • Closed-loop feedback control to improve the consistency of welded product.
  • Short, fast and stable discharge control cycle to effectively prevent burns around pads.
  • Supporting standard MODBUS-RTU data communication.

Technical Specifications

Model JMS1000A JMS1000B
Electric Current Setting 100~1000A
Voltage Setting 0.10~6.00V
Electric Current Monitoring Range 0~9999A
Voltage Monitoring Range 0~9.99V
Time Setting Pre-pressing 0~999ms
Slow ascending 1,2 0~9.99ms
Welding 1,2 0~9.99ms
Cooling 0~9.99ms
Slow descending 1,2 0~9.99ms
Pressure-holding 0~999ms
Max. Electric Current Output 1000A
Pre-powered Detection Function Equipped
Point Counting 0~9999
Power Supply Control Method Constant Electric Current & Power Supply Constant Electric Current & Voltage
Power 300W
Dimensions (W*D*H) 306×160×338mm 308×326×175mm
Weight 16kg
